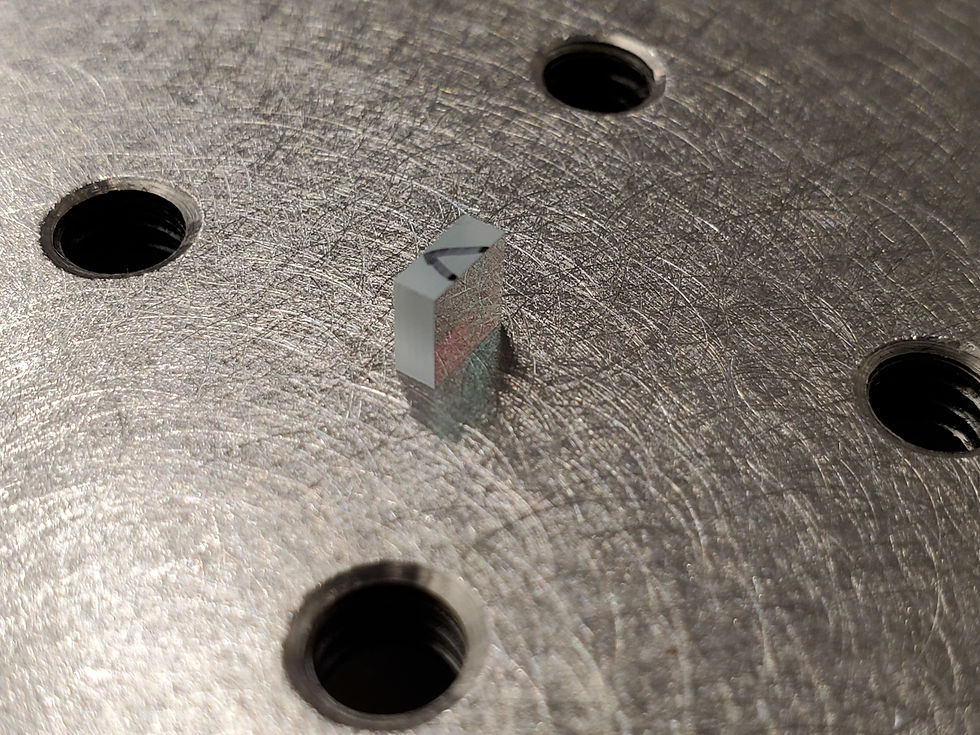

Fiber DWDM 1 515/ 1550 nm ex stock

Angle of Incidence

0 Degrees

Filter Design

Multi-Cavity

FWHM

< 0.25 nm

Center Wavelength

532.1 nm Nominal

† Transmission Band(s)

532.1 nm > 80% T Absolute

Blocking Level

OD6

* Blocking Range(s)

OD6: 350 to 521 nm, 543 to 1200 nm

Dimensions

25.0 mm Diameter

Substrate Type

Borofloat®

Filter Thickness

2.0 mm

Assembly Type

Anodized Aluminum Ring

Assembly Thickness

3.5 mm

Custom Sizing Available

yes

Operating Wavelength

Bandwidth

Isolation

Efficiency

Power Handling

Port config.

515/1550nm Single mode at both wavelengths

1500nm - 1600nm 465nm - 565nm

30dB

>90%

250KW/cm2 - CW 1GW/cm2- Pulsed

1 X 2,  1m long each
